YOLOv3 using Tensorflow 2.0

computervision
deeplearning
keras
python
tensorflow
Implementation of YOLOv3 using Tensorflow 2.0
Author

GeekyRakshit

Published

April 13, 2020

Kaggle Notebook Link: https://www.kaggle.com/soumikrakshit/yolo-v3-using-tensorflow-2-0

Environment Setup

!pip install --upgrade tensorflow
!mkdir data
!wget wget https://pjreddie.com/media/files/yolov3.weights -O data/yolov3.weights
!wget https://pjreddie.com/media/files/yolov3-tiny.weights -O data/yolov3-tiny.weights
Collecting tensorflow
  Downloading https://files.pythonhosted.org/packages/46/0f/7bd55361168bb32796b360ad15a25de6966c9c1beb58a8e30c01c8279862/tensorflow-2.0.0-cp36-cp36m-manylinux2010_x86_64.whl (86.3MB)
     |████████████████████████████████| 86.3MB 41.3MB/s
Requirement already satisfied, skipping upgrade: grpcio>=1.8.6 in /opt/conda/lib/python3.6/site-packages (from tensorflow) (1.24.0)
Collecting opt-einsum>=2.3.2 (from tensorflow)
  Downloading https://files.pythonhosted.org/packages/b8/83/755bd5324777875e9dff19c2e59daec837d0378c09196634524a3d7269ac/opt_einsum-3.1.0.tar.gz (69kB)
     |████████████████████████████████| 71kB 17.3MB/s
Requirement already satisfied, skipping upgrade: absl-py>=0.7.0 in /opt/conda/lib/python3.6/site-packages (from tensorflow) (0.8.0)
Requirement already satisfied, skipping upgrade: numpy<2.0,>=1.16.0 in /opt/conda/lib/python3.6/site-packages (from tensorflow) (1.16.4)
Requirement already satisfied, skipping upgrade: termcolor>=1.1.0 in /opt/conda/lib/python3.6/site-packages (from tensorflow) (1.1.0)
Collecting gast==0.2.2 (from tensorflow)
  Downloading https://files.pythonhosted.org/packages/4e/35/11749bf99b2d4e3cceb4d55ca22590b0d7c2c62b9de38ac4a4a7f4687421/gast-0.2.2.tar.gz
Requirement already satisfied, skipping upgrade: keras-preprocessing>=1.0.5 in /opt/conda/lib/python3.6/site-packages (from tensorflow) (1.1.0)
Requirement already satisfied, skipping upgrade: six>=1.10.0 in /opt/conda/lib/python3.6/site-packages (from tensorflow) (1.12.0)
Requirement already satisfied, skipping upgrade: google-pasta>=0.1.6 in /opt/conda/lib/python3.6/site-packages (from tensorflow) (0.1.7)
Requirement already satisfied, skipping upgrade: keras-applications>=1.0.8 in /opt/conda/lib/python3.6/site-packages (from tensorflow) (1.0.8)
Requirement already satisfied, skipping upgrade: protobuf>=3.6.1 in /opt/conda/lib/python3.6/site-packages (from tensorflow) (3.7.1)
Collecting tensorflow-estimator<2.1.0,>=2.0.0 (from tensorflow)
  Downloading https://files.pythonhosted.org/packages/fc/08/8b927337b7019c374719145d1dceba21a8bb909b93b1ad6f8fb7d22c1ca1/tensorflow_estimator-2.0.1-py2.py3-none-any.whl (449kB)
     |████████████████████████████████| 450kB 37.2MB/s
Requirement already satisfied, skipping upgrade: wheel>=0.26 in /opt/conda/lib/python3.6/site-packages (from tensorflow) (0.33.6)
Requirement already satisfied, skipping upgrade: astor>=0.6.0 in /opt/conda/lib/python3.6/site-packages (from tensorflow) (0.8.0)
Requirement already satisfied, skipping upgrade: wrapt>=1.11.1 in /opt/conda/lib/python3.6/site-packages (from tensorflow) (1.11.2)
Collecting tensorboard<2.1.0,>=2.0.0 (from tensorflow)
  Downloading https://files.pythonhosted.org/packages/9b/a6/e8ffa4e2ddb216449d34cfcb825ebb38206bee5c4553d69e7bc8bc2c5d64/tensorboard-2.0.0-py3-none-any.whl (3.8MB)
     |████████████████████████████████| 3.8MB 39.5MB/s
Requirement already satisfied, skipping upgrade: h5py in /opt/conda/lib/python3.6/site-packages (from keras-applications>=1.0.8->tensorflow) (2.9.0)
Requirement already satisfied, skipping upgrade: setuptools in /opt/conda/lib/python3.6/site-packages (from protobuf>=3.6.1->tensorflow) (41.2.0)
Requirement already satisfied, skipping upgrade: markdown>=2.6.8 in /opt/conda/lib/python3.6/site-packages (from tensorboard<2.1.0,>=2.0.0->tensorflow) (3.1.1)
Requirement already satisfied, skipping upgrade: werkzeug>=0.11.15 in /opt/conda/lib/python3.6/site-packages (from tensorboard<2.1.0,>=2.0.0->tensorflow) (0.16.0)
Building wheels for collected packages: opt-einsum, gast
  Building wheel for opt-einsum (setup.py) ... - \ done
  Created wheel for opt-einsum: filename=opt_einsum-3.1.0-cp36-none-any.whl size=61682 sha256=a1a7418e6419a9d3d2b03dfee221c09b5b019f1faf8d59d7b6848e864248fc03
  Stored in directory: /tmp/.cache/pip/wheels/2c/b1/94/43d03e130b929aae7ba3f8d15cbd7bc0d1cb5bb38a5c721833
  Building wheel for gast (setup.py) ... - \ done
  Created wheel for gast: filename=gast-0.2.2-cp36-none-any.whl size=7540 sha256=3be33fecf95b8234e498ec55b1c366566644ac0f1742e4412a01d36199c96d9b
  Stored in directory: /tmp/.cache/pip/wheels/5c/2e/7e/a1d4d4fcebe6c381f378ce7743a3ced3699feb89bcfbdadadd
Successfully built opt-einsum gast
Installing collected packages: opt-einsum, gast, tensorflow-estimator, tensorboard, tensorflow
  Found existing installation: gast 0.3.2
    Uninstalling gast-0.3.2:
      Successfully uninstalled gast-0.3.2
  Found existing installation: tensorflow-estimator 1.14.0
    Uninstalling tensorflow-estimator-1.14.0:
      Successfully uninstalled tensorflow-estimator-1.14.0
  Found existing installation: tensorboard 1.14.0
    Uninstalling tensorboard-1.14.0:
      Successfully uninstalled tensorboard-1.14.0
  Found existing installation: tensorflow 1.14.0
    Uninstalling tensorflow-1.14.0:
      Successfully uninstalled tensorflow-1.14.0
Successfully installed gast-0.2.2 opt-einsum-3.1.0 tensorboard-2.0.0 tensorflow-2.0.0 tensorflow-estimator-2.0.1
--2019-10-19 19:10:21--  http://wget/
Resolving wget (wget)... failed: Name or service not known.
wget: unable to resolve host address ‘wget’
--2019-10-19 19:10:21--  https://pjreddie.com/media/files/yolov3.weights
Resolving pjreddie.com (pjreddie.com)... 128.208.4.108
Connecting to pjreddie.com (pjreddie.com)|128.208.4.108|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 248007048 (237M) [application/octet-stream]
Saving to: ‘data/yolov3.weights’

data/yolov3.weights 100%[===================>] 236.52M  23.0MB/s    in 11s

2019-10-19 19:10:32 (21.3 MB/s) - ‘data/yolov3.weights’ saved [248007048/248007048]

FINISHED --2019-10-19 19:10:32--
Total wall clock time: 12s
Downloaded: 1 files, 237M in 11s (21.3 MB/s)
--2019-10-19 19:10:33--  https://pjreddie.com/media/files/yolov3-tiny.weights
Resolving pjreddie.com (pjreddie.com)... 128.208.4.108
Connecting to pjreddie.com (pjreddie.com)|128.208.4.108|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 35434956 (34M) [application/octet-stream]
Saving to: ‘data/yolov3-tiny.weights’

data/yolov3-tiny.we 100%[===================>]  33.79M  15.5MB/s    in 2.2s

2019-10-19 19:10:36 (15.5 MB/s) - ‘data/yolov3-tiny.weights’ saved [35434956/35434956]

Library Imports

::: {.cell _cell_guid=‘b1076dfc-b9ad-4769-8c92-a6c4dae69d19’ _uuid=‘8f2839f25d086af736a60e9eeb907d3b93b6e0e5’ execution_count=2}

import numpy as np
import pandas as pd
import cv2, os, glob
import xml.etree.ElementTree as ET
import matplotlib.pyplot as plt
import tensorflow as tf
from tensorflow.keras import Model
from tensorflow.keras.layers import (
    Add, Concatenate, Conv2D,
    Input, Lambda, LeakyReLU,
    MaxPool2D, UpSampling2D, ZeroPadding2D
)
from tensorflow.keras.regularizers import l2
from tensorflow.keras.losses import (
    binary_crossentropy,
    sparse_categorical_crossentropy
)
from tensorflow.keras.utils import plot_model

:::

Configurations

::: {.cell _cell_guid=‘79c7e3d0-c299-4dcb-8224-4455121ee9b0’ _uuid=‘d629ff2d2480ee46fbb7e2d37f6b5fab8052498a’ execution_count=3}

YOLOV3_LAYER_LIST = [
    'yolo_darknet',
    'yolo_conv_0',
    'yolo_output_0',
    'yolo_conv_1',
    'yolo_output_1',
    'yolo_conv_2',
    'yolo_output_2',
]

YOLOV3_TINY_LAYER_LIST = [
    'yolo_darknet',
    'yolo_conv_0',
    'yolo_output_0',
    'yolo_conv_1',
    'yolo_output_1',
]

yolo_anchors = np.array([
    (10, 13), (16, 30), (33, 23), (30, 61), (62, 45),
    (59, 119), (116, 90), (156, 198), (373, 326)],
    np.float32) / 416

yolo_anchor_masks = np.array([[6, 7, 8], [3, 4, 5], [0, 1, 2]])

yolo_tiny_anchors = np.array([
    (10, 14), (23, 27), (37, 58),
    (81, 82), (135, 169), (344, 319)],
    np.float32) / 416

yolo_tiny_anchor_masks = np.array([[3, 4, 5], [0, 1, 2]])

class_names = [
    'person', 'bicycle','car','motorbike','aeroplane','bus','train','truck','boat',
    'traffic light','fire hydrant','stop sign','parking meter','bench',
    'bird','cat','dog','horse','sheep','cow','elephant','bear','zebra',
    'giraffe','backpack','umbrella','handbag','tie','suitcase','frisbee',
    'skis','snowboard','sports ball','kite','baseball bat','baseball glove',
    'skateboard','surfboard','tennis racket','bottle','wine glass','cup',
    'fork','knife','spoon','bowl','banana','apple','sandwich','orange',
    'broccoli','carrot','hot dog','pizza','donut','cake','chair','sofa',
    'pottedplant','bed','diningtable','toilet','tvmonitor','laptop','mouse',
    'remote','keyboard','cell phone','microwave','oven','toaster','sink',
    'refrigerator','book','clock','vase','scissors','teddy bear',
    'hair drier','toothbrush'
]

:::

Utilities

def load_darknet_weights(model, weights_file, tiny = False):
    wf = open(weights_file, 'rb')
    major, minor, revision, seen, _ = np.fromfile(wf, dtype=np.int32, count=5)
    if tiny:
        layers = YOLOV3_TINY_LAYER_LIST
    else:
        layers = YOLOV3_LAYER_LIST
    for layer_name in layers:
        sub_model = model.get_layer(layer_name)
        for i, layer in enumerate(sub_model.layers):
            if not layer.name.startswith('conv2d'):
                continue
            batch_norm = None
            if i + 1 < len(sub_model.layers) and sub_model.layers[i + 1].name.startswith('batch_norm'):
                batch_norm = sub_model.layers[i + 1]
            filters = layer.filters
            size = layer.kernel_size[0]
            in_dim = layer.input_shape[-1]
            if batch_norm is None:
                conv_bias = np.fromfile(wf, dtype=np.float32, count=filters)
            else:
                # darknet [beta, gamma, mean, variance]
                bn_weights = np.fromfile(
                    wf, dtype=np.float32, count=4 * filters)
                # tf [gamma, beta, mean, variance]
                bn_weights = bn_weights.reshape((4, filters))[[1, 0, 2, 3]]
            # darknet shape (out_dim, in_dim, height, width)
            conv_shape = (filters, in_dim, size, size)
            conv_weights = np.fromfile(
                wf, dtype=np.float32, count=np.product(conv_shape))
            # tf shape (height, width, in_dim, out_dim)
            conv_weights = conv_weights.reshape(
                conv_shape).transpose([2, 3, 1, 0])
            if batch_norm is None:
                layer.set_weights([conv_weights, conv_bias])
            else:
                layer.set_weights([conv_weights])
                batch_norm.set_weights(bn_weights)
    assert len(wf.read()) == 0, 'failed to read all data'
    wf.close()
def broadcast_iou(box_1, box_2):
    '''
    box_1: (..., (x1, y1, x2, y2))
    box_2: (N, (x1, y1, x2, y2))
    '''

    # broadcast boxes
    box_1 = tf.expand_dims(box_1, -2)
    box_2 = tf.expand_dims(box_2, 0)
    # new_shape: (..., N, (x1, y1, x2, y2))
    new_shape = tf.broadcast_dynamic_shape(tf.shape(box_1), tf.shape(box_2))
    box_1 = tf.broadcast_to(box_1, new_shape)
    box_2 = tf.broadcast_to(box_2, new_shape)
    int_w = tf.maximum(tf.minimum(box_1[..., 2], box_2[..., 2]) - tf.maximum(box_1[..., 0], box_2[..., 0]), 0)
    int_h = tf.maximum(tf.minimum(box_1[..., 3], box_2[..., 3]) - tf.maximum(box_1[..., 1], box_2[..., 1]), 0)
    int_area = int_w * int_h
    box_1_area = (box_1[..., 2] - box_1[..., 0]) * (box_1[..., 3] - box_1[..., 1])
    box_2_area = (box_2[..., 2] - box_2[..., 0]) * (box_2[..., 3] - box_2[..., 1])
    return int_area / (box_1_area + box_2_area - int_area)
def freeze_all(model, frozen = True):
    model.trainable = not frozen
    if isinstance(model, tf.keras.Model):
        for l in model.layers:
            freeze_all(l, frozen)

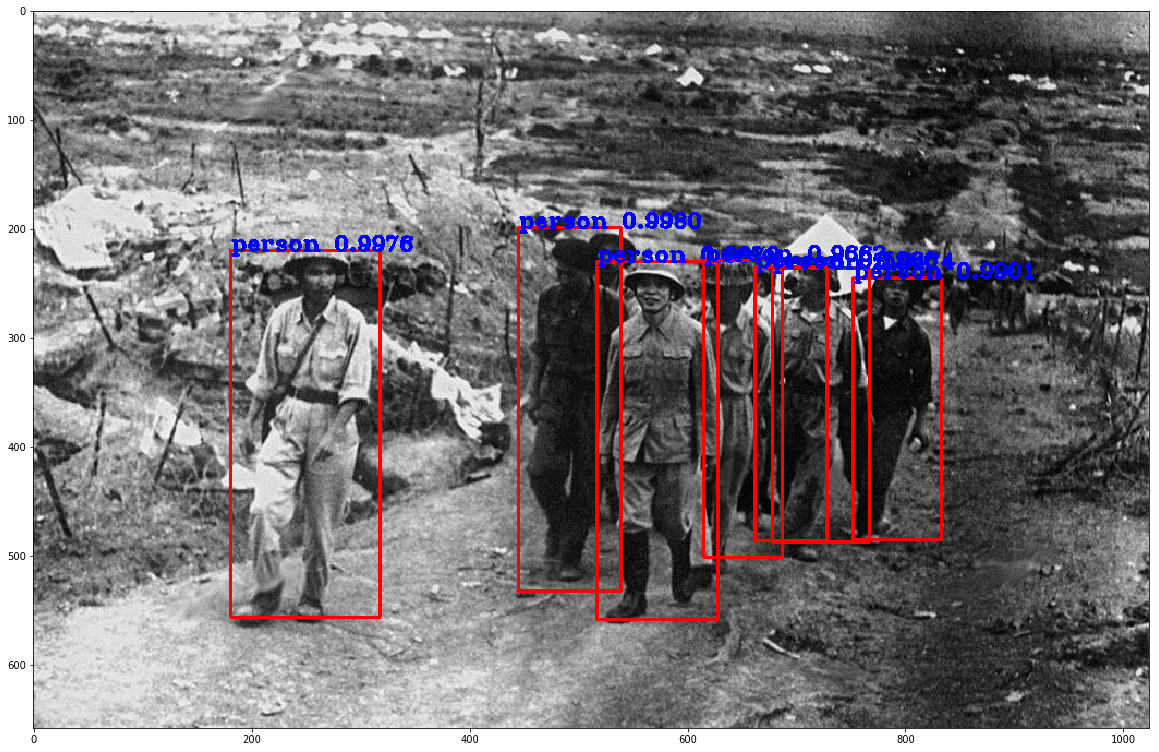

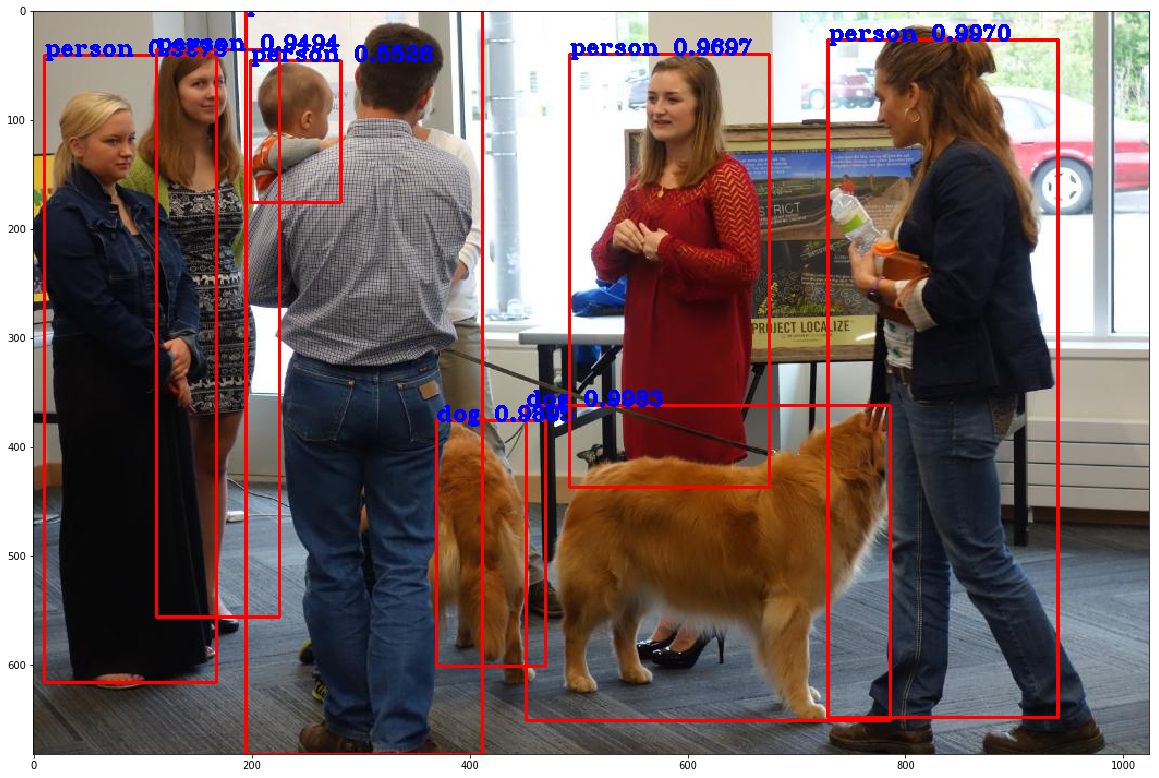

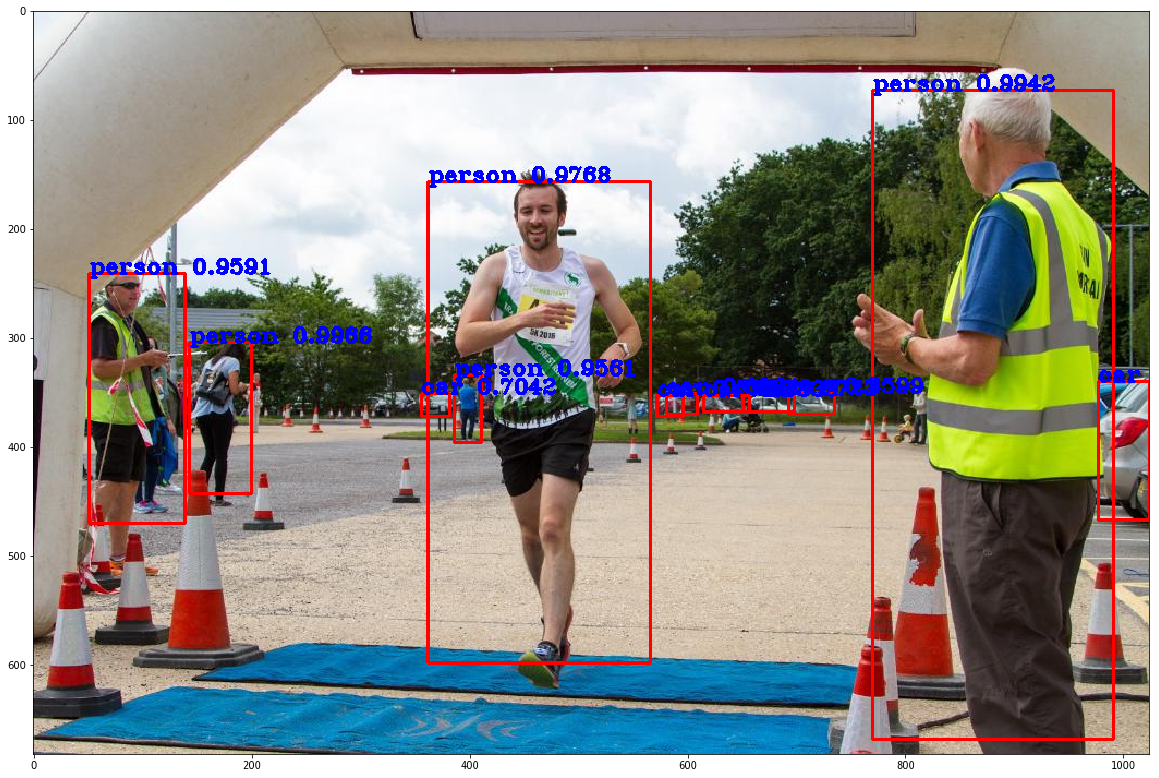

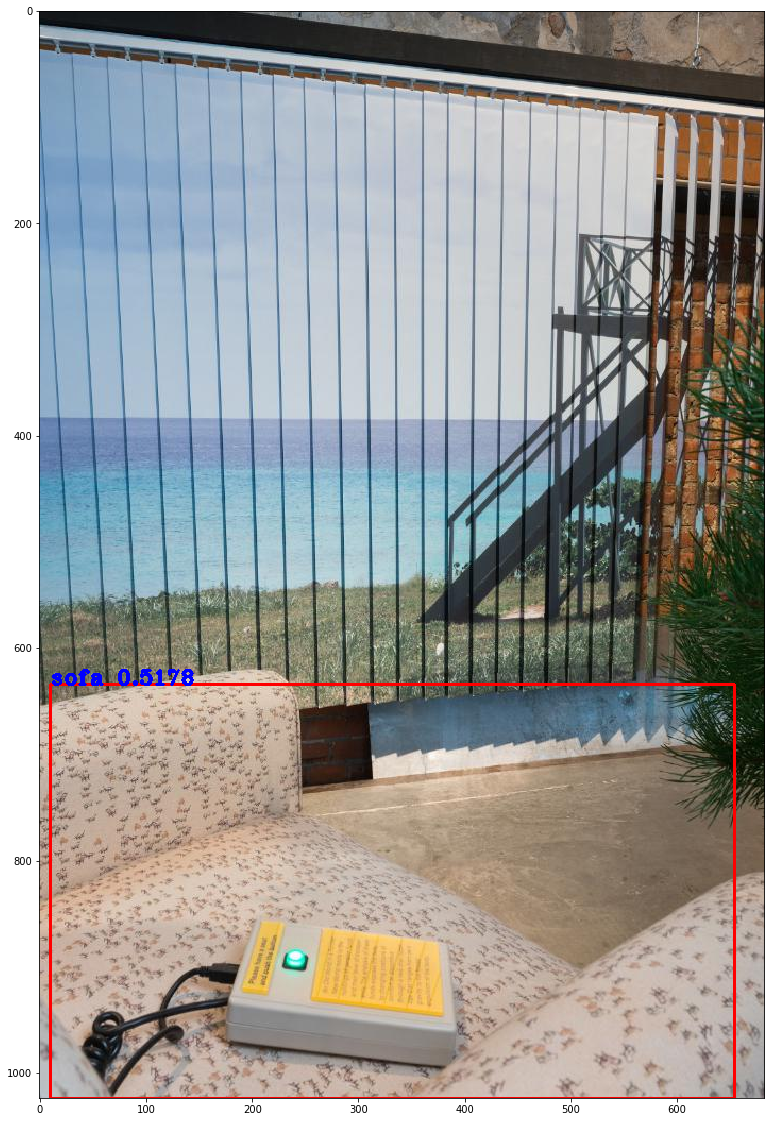

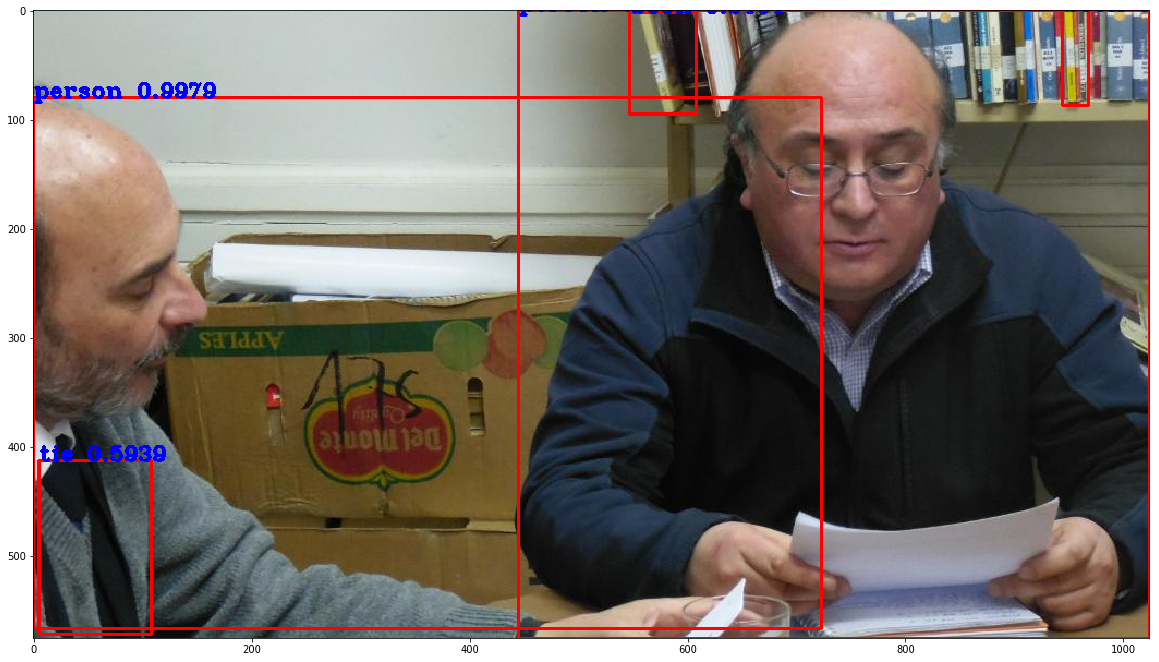

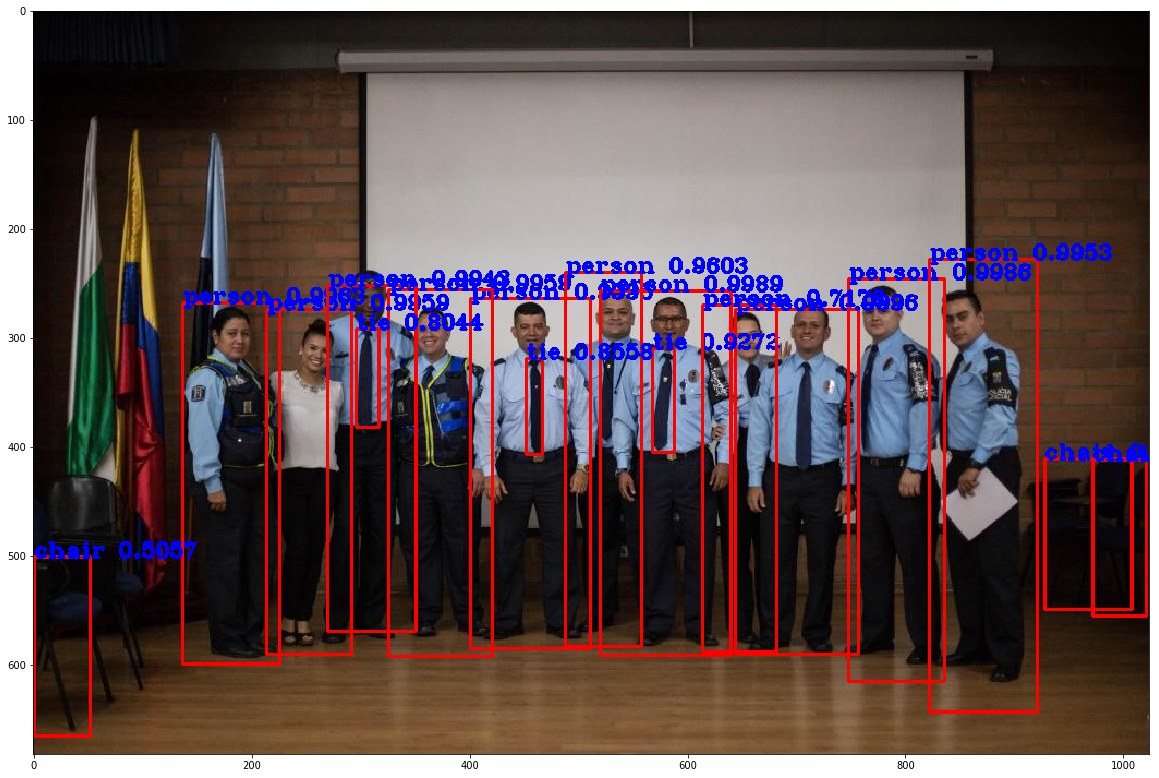

def draw_outputs(img, outputs, class_names):
    boxes, objectness, classes, nums = outputs
    boxes, objectness, classes, nums = boxes[0], objectness[0], classes[0], nums[0]
    wh = np.flip(img.shape[0:2])
    for i in range(nums):
        x1y1 = tuple((np.array(boxes[i][0:2]) * wh).astype(np.int32))
        x2y2 = tuple((np.array(boxes[i][2:4]) * wh).astype(np.int32))
        img = cv2.rectangle(img, x1y1, x2y2, (255, 0, 0), 2)
        img = cv2.putText(img, '{} {:.4f}'.format(
            class_names[int(classes[i])], objectness[i]),
            x1y1, cv2.FONT_HERSHEY_COMPLEX_SMALL, 1, (0, 0, 255), 2)
    return img
def draw_labels(x, y, class_names):
    img = x.numpy()
    boxes, classes = tf.split(y, (4, 1), axis = -1)
    classes = classes[..., 0]
    wh = np.flip(img.shape[0 : 2])
    for i in range(len(boxes)):
        x1y1 = tuple((np.array(boxes[i][0:2]) * wh).astype(np.int32))
        x2y2 = tuple((np.array(boxes[i][2:4]) * wh).astype(np.int32))
        img = cv2.rectangle(img, x1y1, x2y2, (255, 0, 0), 2)
        img = cv2.putText(
            img, class_names[classes[i]],
            x1y1, cv2.FONT_HERSHEY_COMPLEX_SMALL,
            8, (0, 0, 255), 2
        )
    return img
def transform_images(x_train, size):
    x_train = tf.image.resize(x_train, (size, size))
    x_train = x_train / 255
    return x_train
@tf.function
def transform_targets_for_output(y_true, grid_size, anchor_idxs, classes):
    N = tf.shape(y_true)[0]
    y_true_out = tf.zeros(
        (N, grid_size, grid_size, tf.shape(anchor_idxs)[0], 6))
    anchor_idxs = tf.cast(anchor_idxs, tf.int32)
    indexes = tf.TensorArray(tf.int32, 1, dynamic_size=True)
    updates = tf.TensorArray(tf.float32, 1, dynamic_size=True)
    idx = 0
    for i in tf.range(N):
        for j in tf.range(tf.shape(y_true)[1]):
            if tf.equal(y_true[i][j][2], 0):
                continue
            anchor_eq = tf.equal(
                anchor_idxs, tf.cast(y_true[i][j][5], tf.int32))
            if tf.reduce_any(anchor_eq):
                box = y_true[i][j][0:4]
                box_xy = (y_true[i][j][0:2] + y_true[i][j][2:4]) / 2
                anchor_idx = tf.cast(tf.where(anchor_eq), tf.int32)
                grid_xy = tf.cast(box_xy // (1/grid_size), tf.int32)
                indexes = indexes.write(
                    idx, [i, grid_xy[1], grid_xy[0], anchor_idx[0][0]])
                updates = updates.write(
                    idx, [box[0], box[1], box[2], box[3], 1, y_true[i][j][4]])
                idx += 1
    return tf.tensor_scatter_nd_update(
        y_true_out, indexes.stack(), updates.stack())
def transform_targets(y_train, anchors, anchor_masks, classes):
    y_outs = []
    grid_size = 13
    anchors = tf.cast(anchors, tf.float32)
    anchor_area = anchors[..., 0] * anchors[..., 1]
    box_wh = y_train[..., 2:4] - y_train[..., 0:2]
    box_wh = tf.tile(tf.expand_dims(box_wh, -2), (1, 1, tf.shape(anchors)[0], 1))
    box_area = box_wh[..., 0] * box_wh[..., 1]
    intersection = tf.minimum(box_wh[..., 0], anchors[..., 0]) * tf.minimum(box_wh[..., 1], anchors[..., 1])
    iou = intersection / (box_area + anchor_area - intersection)
    anchor_idx = tf.cast(tf.argmax(iou, axis=-1), tf.float32)
    anchor_idx = tf.expand_dims(anchor_idx, axis=-1)
    y_train = tf.concat([y_train, anchor_idx], axis=-1)
    for anchor_idxs in anchor_masks:
        y_outs.append(transform_targets_for_output(
            y_train, grid_size, anchor_idxs, classes))
        grid_size *= 2
    return tuple(y_outs)

YOLO V3 Model

class BatchNormalization(tf.keras.layers.BatchNormalization):

    def call(self, x, training = False):
        if training is None:
            traininig = tf.constant(False)
        training = tf.logical_and(training, self.trainable)
        return super().call(x, training)
def DarknetConv(x, filters, size, strides=1, batch_norm=True):
    if strides == 1:
        padding = 'same'
    else:
        x = ZeroPadding2D(((1, 0), (1, 0)))(x)  # top left half-padding
        padding = 'valid'
    x = Conv2D(filters=filters, kernel_size=size,
               strides=strides, padding=padding,
               use_bias=not batch_norm, kernel_regularizer=l2(0.0005))(x)
    if batch_norm:
        x = BatchNormalization()(x)
        x = LeakyReLU(alpha=0.1)(x)
    return x
def DarknetResidual(x, filters):
    prev = x
    x = DarknetConv(x, filters // 2, 1)
    x = DarknetConv(x, filters, 3)
    x = Add()([prev, x])
    return x
def DarknetBlock(x, filters, blocks):
    x = DarknetConv(x, filters, 3, strides=2)
    for _ in range(blocks):
        x = DarknetResidual(x, filters)
    return x
def Darknet(name=None):
    x = inputs = Input([None, None, 3])
    x = DarknetConv(x, 32, 3)
    x = DarknetBlock(x, 64, 1)
    x = DarknetBlock(x, 128, 2)  # skip connection
    x = x_36 = DarknetBlock(x, 256, 8)  # skip connection
    x = x_61 = DarknetBlock(x, 512, 8)
    x = DarknetBlock(x, 1024, 4)
    return tf.keras.Model(inputs, (x_36, x_61, x), name=name)
def DarknetTiny(name=None):
    x = inputs = Input([None, None, 3])
    x = DarknetConv(x, 16, 3)
    x = MaxPool2D(2, 2, 'same')(x)
    x = DarknetConv(x, 32, 3)
    x = MaxPool2D(2, 2, 'same')(x)
    x = DarknetConv(x, 64, 3)
    x = MaxPool2D(2, 2, 'same')(x)
    x = DarknetConv(x, 128, 3)
    x = MaxPool2D(2, 2, 'same')(x)
    x = x_8 = DarknetConv(x, 256, 3)  # skip connection
    x = MaxPool2D(2, 2, 'same')(x)
    x = DarknetConv(x, 512, 3)
    x = MaxPool2D(2, 1, 'same')(x)
    x = DarknetConv(x, 1024, 3)
    return tf.keras.Model(inputs, (x_8, x), name=name)
def YoloConv(filters, name=None):
    def yolo_conv(x_in):
        if isinstance(x_in, tuple):
            inputs = Input(x_in[0].shape[1:]), Input(x_in[1].shape[1:])
            x, x_skip = inputs
            # concat with skip connection
            x = DarknetConv(x, filters, 1)
            x = UpSampling2D(2)(x)
            x = Concatenate()([x, x_skip])
        else:
            x = inputs = Input(x_in.shape[1:])
        x = DarknetConv(x, filters, 1)
        x = DarknetConv(x, filters * 2, 3)
        x = DarknetConv(x, filters, 1)
        x = DarknetConv(x, filters * 2, 3)
        x = DarknetConv(x, filters, 1)
        return Model(inputs, x, name=name)(x_in)
    return yolo_conv
def YoloConvTiny(filters, name=None):
    def yolo_conv(x_in):
        if isinstance(x_in, tuple):
            inputs = Input(x_in[0].shape[1:]), Input(x_in[1].shape[1:])
            x, x_skip = inputs
            # concat with skip connection
            x = DarknetConv(x, filters, 1)
            x = UpSampling2D(2)(x)
            x = Concatenate()([x, x_skip])
        else:
            x = inputs = Input(x_in.shape[1:])
            x = DarknetConv(x, filters, 1)
        return Model(inputs, x, name=name)(x_in)
    return yolo_conv
def YoloOutput(filters, anchors, classes, name=None):
    def yolo_output(x_in):
        x = inputs = Input(x_in.shape[1:])
        x = DarknetConv(x, filters * 2, 3)
        x = DarknetConv(x, anchors * (classes + 5), 1, batch_norm=False)
        x = Lambda(lambda x: tf.reshape(x, (-1, tf.shape(x)[1], tf.shape(x)[2], anchors, classes + 5)))(x)
        return tf.keras.Model(inputs, x, name=name)(x_in)
    return yolo_output
def yolo_boxes(pred, anchors, classes):
    '''pred: (batch_size, grid, grid, anchors, (x, y, w, h, obj, ...classes))'''
    grid_size = tf.shape(pred)[1]
    box_xy, box_wh, objectness, class_probs = tf.split(
        pred, (2, 2, 1, classes), axis=-1)
    box_xy = tf.sigmoid(box_xy)
    objectness = tf.sigmoid(objectness)
    class_probs = tf.sigmoid(class_probs)
    pred_box = tf.concat((box_xy, box_wh), axis=-1)  # original xywh for loss
    grid = tf.meshgrid(tf.range(grid_size), tf.range(grid_size))
    grid = tf.expand_dims(tf.stack(grid, axis=-1), axis=2)  # [gx, gy, 1, 2]
    box_xy = (box_xy + tf.cast(grid, tf.float32)) / \
        tf.cast(grid_size, tf.float32)
    box_wh = tf.exp(box_wh) * anchors
    box_x1y1 = box_xy - box_wh / 2
    box_x2y2 = box_xy + box_wh / 2
    bbox = tf.concat([box_x1y1, box_x2y2], axis=-1)
    return bbox, objectness, class_probs, pred_box
def yolo_nms(outputs, anchors, masks, classes):
    '''boxes, conf, type'''
    b, c, t = [], [], []
    for o in outputs:
        b.append(tf.reshape(o[0], (tf.shape(o[0])[0], -1, tf.shape(o[0])[-1])))
        c.append(tf.reshape(o[1], (tf.shape(o[1])[0], -1, tf.shape(o[1])[-1])))
        t.append(tf.reshape(o[2], (tf.shape(o[2])[0], -1, tf.shape(o[2])[-1])))
    bbox = tf.concat(b, axis=1)
    confidence = tf.concat(c, axis=1)
    class_probs = tf.concat(t, axis=1)
    scores = confidence * class_probs
    boxes, scores, classes, valid_detections = tf.image.combined_non_max_suppression(
        boxes=tf.reshape(bbox, (tf.shape(bbox)[0], -1, 1, 4)),
        scores=tf.reshape(
            scores,
            (tf.shape(scores)[0], -1, tf.shape(scores)[-1])
        ),
        max_output_size_per_class=100,
        max_total_size = 100,
        iou_threshold = 0.5,
        score_threshold = 0.5
    )
    return boxes, scores, classes, valid_detections
def YoloV3(size=None, channels=3, anchors=yolo_anchors, masks=yolo_anchor_masks, classes=80, training=False):
    x = inputs = Input([size, size, channels])
    x_36, x_61, x = Darknet(name='yolo_darknet')(x)
    x = YoloConv(512, name='yolo_conv_0')(x)
    output_0 = YoloOutput(512, len(masks[0]), classes, name='yolo_output_0')(x)
    x = YoloConv(256, name='yolo_conv_1')((x, x_61))
    output_1 = YoloOutput(256, len(masks[1]), classes, name='yolo_output_1')(x)
    x = YoloConv(128, name='yolo_conv_2')((x, x_36))
    output_2 = YoloOutput(128, len(masks[2]), classes, name='yolo_output_2')(x)
    if training:
        return Model(inputs, (output_0, output_1, output_2), name='yolov3')
    boxes_0 = Lambda(lambda x: yolo_boxes(x, anchors[masks[0]], classes),
                     name='yolo_boxes_0')(output_0)
    boxes_1 = Lambda(lambda x: yolo_boxes(x, anchors[masks[1]], classes),
                     name='yolo_boxes_1')(output_1)
    boxes_2 = Lambda(lambda x: yolo_boxes(x, anchors[masks[2]], classes),
                     name='yolo_boxes_2')(output_2)
    outputs = Lambda(lambda x: yolo_nms(x, anchors, masks, classes),
                     name='yolo_nms')((boxes_0[:3], boxes_1[:3], boxes_2[:3]))
    return Model(inputs, outputs, name='yolov3')
def YoloV3Tiny(size=None, channels=3, anchors=yolo_tiny_anchors, masks=yolo_tiny_anchor_masks, classes=80, training=False):
    x = inputs = Input([size, size, channels])
    x_8, x = DarknetTiny(name='yolo_darknet')(x)
    x = YoloConvTiny(256, name='yolo_conv_0')(x)
    output_0 = YoloOutput(256, len(masks[0]), classes, name='yolo_output_0')(x)
    x = YoloConvTiny(128, name='yolo_conv_1')((x, x_8))
    output_1 = YoloOutput(128, len(masks[1]), classes, name='yolo_output_1')(x)
    if training:
        return Model(inputs, (output_0, output_1), name='yolov3')
    boxes_0 = Lambda(lambda x: yolo_boxes(x, anchors[masks[0]], classes),
                     name='yolo_boxes_0')(output_0)
    boxes_1 = Lambda(lambda x: yolo_boxes(x, anchors[masks[1]], classes),
                     name='yolo_boxes_1')(output_1)
    outputs = Lambda(lambda x: yolo_nms(x, anchors, masks, classes),
                     name='yolo_nms')((boxes_0[:3], boxes_1[:3]))
    return Model(inputs, outputs, name='yolov3_tiny')

YOLO Loss

def YoloLoss(anchors, classes=80, ignore_thresh=0.5):
    def yolo_loss(y_true, y_pred):
        # 1. transform all pred outputs
        # y_pred: (batch_size, grid, grid, anchors, (x, y, w, h, obj, ...cls))
        pred_box, pred_obj, pred_class, pred_xywh = yolo_boxes(y_pred, anchors, classes)
        pred_xy = pred_xywh[..., 0:2]
        pred_wh = pred_xywh[..., 2:4]
        # 2. transform all true outputs
        # y_true: (batch_size, grid, grid, anchors, (x1, y1, x2, y2, obj, cls))
        true_box, true_obj, true_class_idx = tf.split(
            y_true, (4, 1, 1), axis=-1)
        true_xy = (true_box[..., 0:2] + true_box[..., 2:4]) / 2
        true_wh = true_box[..., 2:4] - true_box[..., 0:2]
        # give higher weights to small boxes
        box_loss_scale = 2 - true_wh[..., 0] * true_wh[..., 1]
        # 3. inverting the pred box equations
        grid_size = tf.shape(y_true)[1]
        grid = tf.meshgrid(tf.range(grid_size), tf.range(grid_size))
        grid = tf.expand_dims(tf.stack(grid, axis=-1), axis=2)
        true_xy = true_xy * tf.cast(grid_size, tf.float32) - \
            tf.cast(grid, tf.float32)
        true_wh = tf.math.log(true_wh / anchors)
        true_wh = tf.where(tf.math.is_inf(true_wh), tf.zeros_like(true_wh), true_wh)
        # 4. calculate all masks
        obj_mask = tf.squeeze(true_obj, -1)
        # ignore false positive when iou is over threshold
        true_box_flat = tf.boolean_mask(true_box, tf.cast(obj_mask, tf.bool))
        best_iou = tf.reduce_max(broadcast_iou(
            pred_box, true_box_flat), axis=-1)
        ignore_mask = tf.cast(best_iou < ignore_thresh, tf.float32)
        # 5. calculate all losses
        xy_loss = obj_mask * box_loss_scale * \
            tf.reduce_sum(tf.square(true_xy - pred_xy), axis=-1)
        wh_loss = obj_mask * box_loss_scale * \
            tf.reduce_sum(tf.square(true_wh - pred_wh), axis=-1)
        obj_loss = binary_crossentropy(true_obj, pred_obj)
        obj_loss = obj_mask * obj_loss + \
            (1 - obj_mask) * ignore_mask * obj_loss
        # Could also use binary_crossentropy instead
        class_loss = obj_mask * sparse_categorical_crossentropy(
            true_class_idx, pred_class)
        # 6. sum over (batch, gridx, gridy, anchors) => (batch, 1)
        xy_loss = tf.reduce_sum(xy_loss, axis=(1, 2, 3))
        wh_loss = tf.reduce_sum(wh_loss, axis=(1, 2, 3))
        obj_loss = tf.reduce_sum(obj_loss, axis=(1, 2, 3))
        class_loss = tf.reduce_sum(class_loss, axis=(1, 2, 3))
        return xy_loss + wh_loss + obj_loss + class_loss
    return yolo_loss

Tiny YOLO Inference

yolo = YoloV3(classes = 80)
yolo.summary()
Model: "yolov3"
__________________________________________________________________________________________________
Layer (type)                    Output Shape         Param #     Connected to
==================================================================================================
input_1 (InputLayer)            [(None, None, None,  0
__________________________________________________________________________________________________
yolo_darknet (Model)            ((None, None, None,  40620640    input_1[0][0]
__________________________________________________________________________________________________
yolo_conv_0 (Model)             (None, None, None, 5 11024384    yolo_darknet[1][2]
__________________________________________________________________________________________________
yolo_conv_1 (Model)             (None, None, None, 2 2957312     yolo_conv_0[1][0]
                                                                 yolo_darknet[1][1]
__________________________________________________________________________________________________
yolo_conv_2 (Model)             (None, None, None, 1 741376      yolo_conv_1[1][0]
                                                                 yolo_darknet[1][0]
__________________________________________________________________________________________________
yolo_output_0 (Model)           (None, None, None, 3 4984063     yolo_conv_0[1][0]
__________________________________________________________________________________________________
yolo_output_1 (Model)           (None, None, None, 3 1312511     yolo_conv_1[1][0]
__________________________________________________________________________________________________
yolo_output_2 (Model)           (None, None, None, 3 361471      yolo_conv_2[1][0]
__________________________________________________________________________________________________
yolo_boxes_0 (Lambda)           ((None, None, None,  0           yolo_output_0[1][0]
__________________________________________________________________________________________________
yolo_boxes_1 (Lambda)           ((None, None, None,  0           yolo_output_1[1][0]
__________________________________________________________________________________________________
yolo_boxes_2 (Lambda)           ((None, None, None,  0           yolo_output_2[1][0]
__________________________________________________________________________________________________
yolo_nms (Lambda)               ((None, 100, 4), (No 0           yolo_boxes_0[0][0]
                                                                 yolo_boxes_0[0][1]
                                                                 yolo_boxes_0[0][2]
                                                                 yolo_boxes_1[0][0]
                                                                 yolo_boxes_1[0][1]
                                                                 yolo_boxes_1[0][2]
                                                                 yolo_boxes_2[0][0]
                                                                 yolo_boxes_2[0][1]
                                                                 yolo_boxes_2[0][2]
==================================================================================================
Total params: 62,001,757
Trainable params: 61,949,149
Non-trainable params: 52,608
__________________________________________________________________________________________________
plot_model(
    yolo, rankdir = 'TB',
    to_file = 'yolo_model.png',
    show_shapes = False,
    show_layer_names = True,
    expand_nested = True
)

load_darknet_weights(yolo, './data/yolov3.weights', False)
def predict(image_file, visualize = True, figsize = (16, 16)):
    img = tf.image.decode_image(open(image_file, 'rb').read(), channels=3)
    img = tf.expand_dims(img, 0)
    img = transform_images(img, 416)
    boxes, scores, classes, nums = yolo.predict(img)
    img = cv2.cvtColor(cv2.imread(image_file), cv2.COLOR_BGR2RGB)
    img = draw_outputs(img, (boxes, scores, classes, nums), class_names)
    if visualize:
        fig, axes = plt.subplots(figsize = figsize)
        plt.imshow(img)
        plt.show()
    return boxes, scores, classes, nums
image_file = glob.glob('../input/google-ai-open-images-object-detection-track/test/challenge2018_test/*')
len(image_file)
99999
boxes, scores, classes, nums = predict(image_file[0], figsize = (20, 20))

boxes, scores, classes, nums = predict(image_file[1], figsize = (20, 20))

boxes, scores, classes, nums = predict(image_file[3], figsize = (20, 20))

boxes, scores, classes, nums = predict(image_file[4], figsize = (20, 20))

boxes, scores, classes, nums = predict(image_file[8], figsize = (20, 20))

boxes, scores, classes, nums = predict(image_file[12], figsize = (20, 20))

boxes, scores, classes, nums = predict(image_file[13], figsize = (20, 20))

boxes, scores, classes, nums = predict(image_file[15], figsize = (20, 20))

boxes, scores, classes, nums = predict(image_file[18], figsize = (20, 20))
